Noshok 604-FFC 1/2 NPT, Female x Female, Steel, Hard Seat Block & Bleed Valve
Original price was: $99.27.$49.52Current price is: $49.52.
Noshok 604-FFC-PM1-EM1 1/2" NPT Female-female Hard Seat Panel MOUNT-Oring Steel Block & Bleed Valve
Original price was: $109.47.$60.24Current price is: $60.24.
Noshok 604-FFC-PM1 1/2 NPT, Female x Female, Steel, Panel Mount, Hard Seat Block & Bleed Valve
Original price was: $121.51.$65.50Current price is: $65.50.
11
People watching this product now!

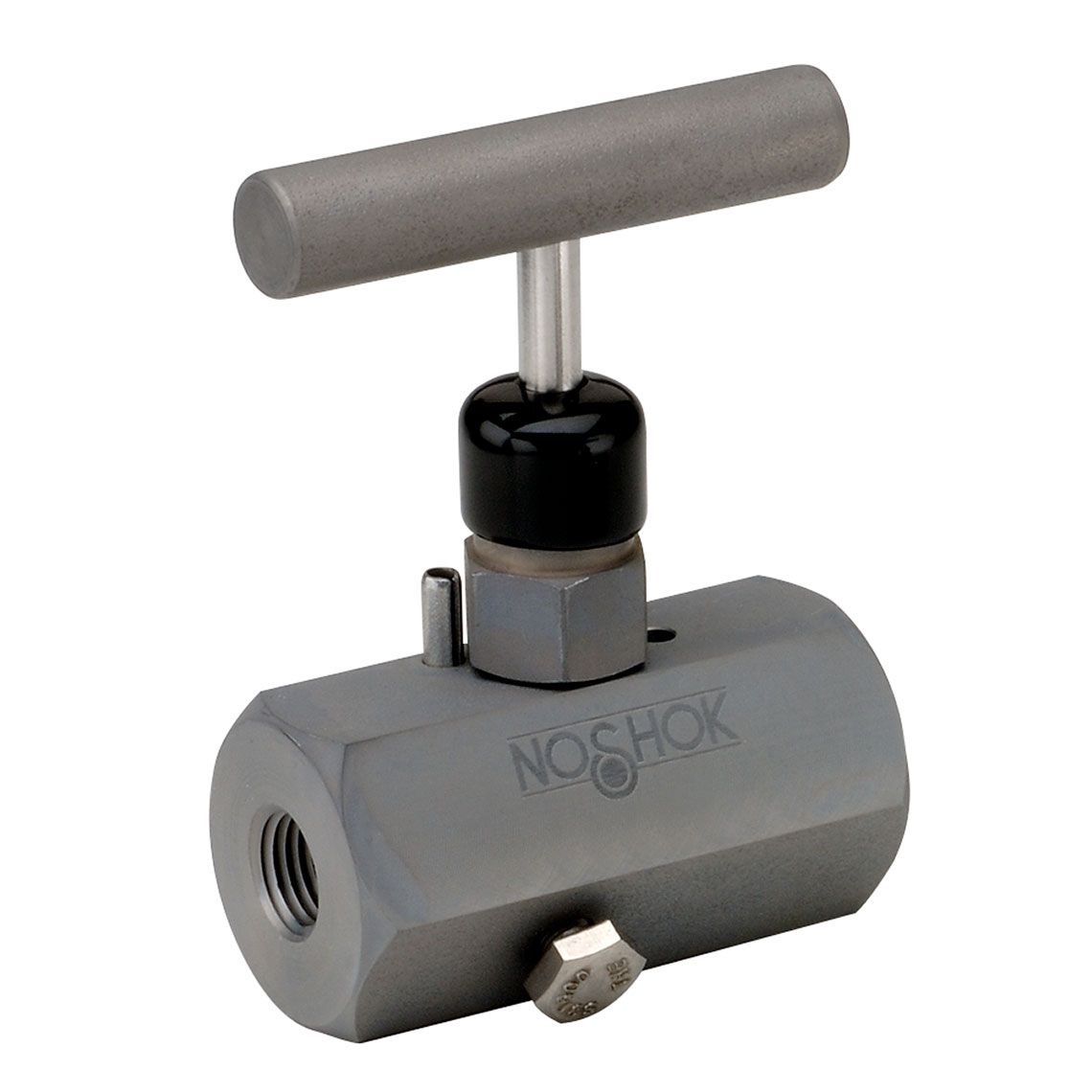

Noshok 604-FFC-PM1 1/2 NPT, Female x Female, Steel, Panel Mount, Hard Seat Block & Bleed Valve
600 Series Block & Bleed, Hard Seat Needle Valves
Application Brochures
Water/Wastewater
Oil & GasIf you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
ORDERING INFORMATION
| SERIES | 6 | 600 Series, hard seat | ||
| CONNECTION SIZES | 02 | 1/4″ NPT | 04 | 1/2″ NPT |
| VALVE TYPES | MFC | Male-Female, Steel | MFS | Male-Female, Stainless Steel |
| FFC | Female-Female, Steel | FFS | Female-Female, Stainless Steel |
ORDERING INFORMATION – Additional Options
| PACKINGS†| P1 | PTFE | P2 | Graphite | ||
| STEM TIPS | T1 | Non-rotating (316 stainless) | T6 | Ball (carbide) | T8 | Ball (Monel) |
| T5 | Ball (440C stainless) | T7 | Ball (ceramic) | T9 | Non-rotating regulating (316 Stainless) | |
| O-RINGS* | EM1 | EPDM | KZ1 | FFKM (Kalrez® 3018 or equivalent) | NB1 | NBR |
| PANEL MOUNTINGS | PM1 | Panel mount (1 nut) | PM2 | Panel mount (2 nuts) | ||
| HANDLES | HL4 | 1-3/8″ Phenolic | HL5 | 1-3/4″ Phenolic |
†If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the “Pressure vs Temperature: Packing Style with Compatible Fluid” chart.
* Other o-ring materials available on request.
Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are “T” handles (HL2).
The handle material will always match the material of the valve, unless otherwise specified. For example, the “T” handle (HL2) on the 602-FFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests.
Options & Accessories
Description
Noshok 604-FFC-PM1 1/2 NPT, Female x Female, Steel, Panel Mount, Hard Seat Block & Bleed Valve
600 Series Block & Bleed, Hard Seat Needle Valves
Application Brochures
Water/Wastewater
Oil & GasIf you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
ORDERING INFORMATION
| SERIES | 6 | 600 Series, hard seat | ||
| CONNECTION SIZES | 02 | 1/4″ NPT | 04 | 1/2″ NPT |
| VALVE TYPES | MFC | Male-Female, Steel | MFS | Male-Female, Stainless Steel |
| FFC | Female-Female, Steel | FFS | Female-Female, Stainless Steel |
ORDERING INFORMATION – Additional Options
| PACKINGS†| P1 | PTFE | P2 | Graphite | ||
| STEM TIPS | T1 | Non-rotating (316 stainless) | T6 | Ball (carbide) | T8 | Ball (Monel) |
| T5 | Ball (440C stainless) | T7 | Ball (ceramic) | T9 | Non-rotating regulating (316 Stainless) | |
| O-RINGS* | EM1 | EPDM | KZ1 | FFKM (Kalrez® 3018 or equivalent) | NB1 | NBR |
| PANEL MOUNTINGS | PM1 | Panel mount (1 nut) | PM2 | Panel mount (2 nuts) | ||
| HANDLES | HL4 | 1-3/8″ Phenolic | HL5 | 1-3/4″ Phenolic |
†If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the “Pressure vs Temperature: Packing Style with Compatible Fluid” chart.
* Other o-ring materials available on request.
Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are “T” handles (HL2).
The handle material will always match the material of the valve, unless otherwise specified. For example, the “T” handle (HL2) on the 602-FFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests.
