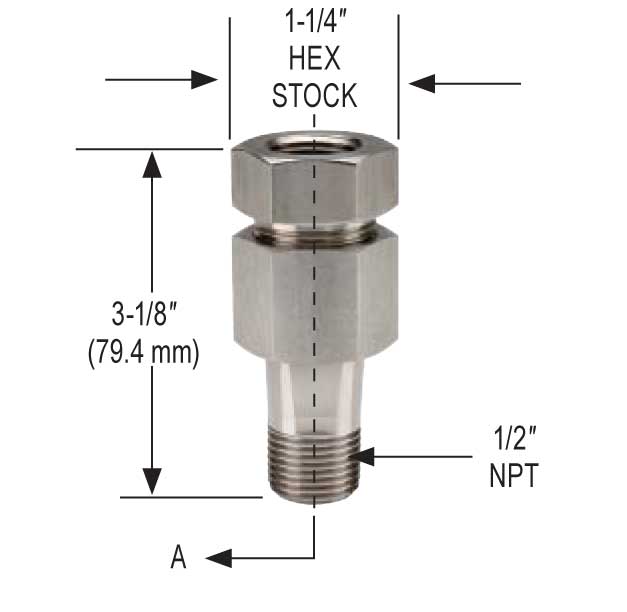

104-SAS 1/2″ NPT M – F 316SS Swivel Adapter
Swivel Adaptor
- Temperature ratings: 15,000 psi @ 200 °F and 3,000 psi @ 1,000 °F
- Used with gauges and gauge valves to adjust the line of sight
- Rotates 360° to allow the connected instrument to be positioned in the desired direction
- The pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nut
- All 316 stainless steel construction
- Standard with 1/2″ NPT male process – 1/2″ NPT female instrument connections
- Also available with 1/4″ NPT connections, same specifications apply
- Weight approximately 0.8 lb.
Swivel Adaptor
- Temperature ratings: 15,000 psi @ 200 °F and 3,000 psi @ 1,000 °F
- Used with gauges and gauge valves to adjust the line of sight
- Rotates 360° to allow the connected instrument to be positioned in the desired direction
- The pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nut
- All 316 stainless steel construction
- Standard with 1/2″ NPT male process – 1/2″ NPT female instrument connections
- Also available with 1/4″ NPT connections, same specifications apply
- Weight approximately 0.8 lb.
Description
104-SAS 1/2″ NPT M – F 316SS Swivel Adapter
Swivel Adaptor
- Temperature ratings: 15,000 psi @ 200 °F and 3,000 psi @ 1,000 °F
- Used with gauges and gauge valves to adjust the line of sight
- Rotates 360° to allow the connected instrument to be positioned in the desired direction
- The pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nut
- All 316 stainless steel construction
- Standard with 1/2″ NPT male process – 1/2″ NPT female instrument connections
- Also available with 1/4″ NPT connections, same specifications apply
- Weight approximately 0.8 lb.
Swivel Adaptor
- Temperature ratings: 15,000 psi @ 200 °F and 3,000 psi @ 1,000 °F
- Used with gauges and gauge valves to adjust the line of sight
- Rotates 360° to allow the connected instrument to be positioned in the desired direction
- The pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nut
- All 316 stainless steel construction
- Standard with 1/2″ NPT male process – 1/2″ NPT female instrument connections
- Also available with 1/4″ NPT connections, same specifications apply
- Weight approximately 0.8 lb.
