1325 1/4 NPT Pressure Rating 6,000 PSI Piston Type Brass Snubber
Original price was: $47.84.$34.99Current price is: $34.99.
13
People watching this product now!

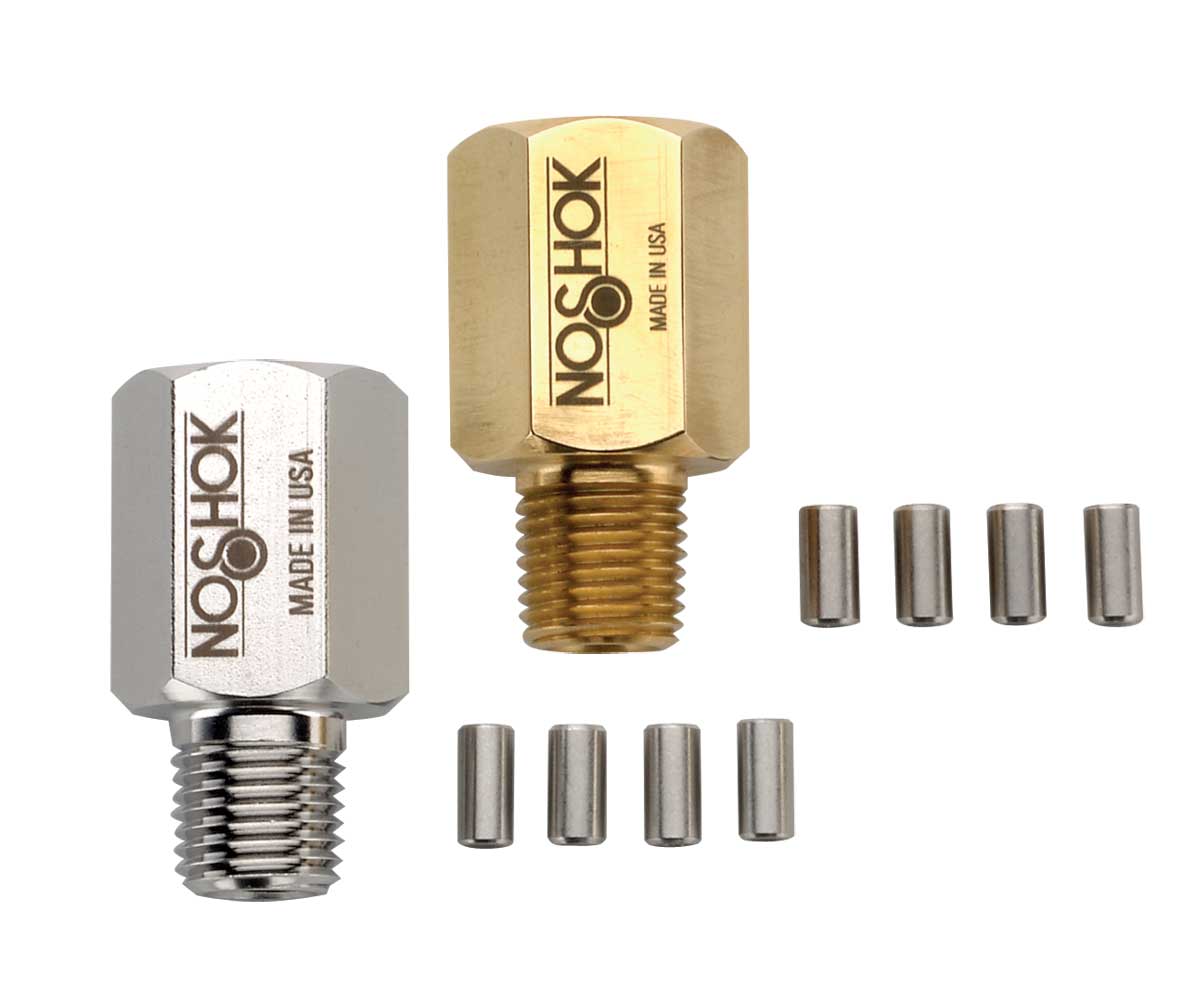

1325 1/4″ NPT Piston Type Brass Snubber
1/4 NPT Piston Type Brass Snubber, Pressure Rating 6,000 PSI
Pressure Snubbers Options & Accessories
Piston-Type Snubbers Specifications
| MODEL NO. | SIZE | MATERIAL | PRESSURE RATING |
| 1325 | 1/4″ NPT | Brass | 6,000 psi |
| 1335 | SAE J1926-3:7/16-20 | Brass | 6,000 psi |
| 1350 | 1/2″ NPT | Brass | 6,000 psi |
| 5025 | 1/4″ NPT | 316 stainless steel | 15,000 psi |
| 5035 | SAE J1926-3:7/16-20 | 316 stainless steel | 8,000 psi |
| 5050 | 1/2″ NPT | 316 stainless steel | 15,000 psi |
| DIMENSIONS | 1/4″NPT | 1/2″ NPT | SAE J1926-3:7/16-20 |  |
|
| A | IN | 0.812 | 1.125 | 0.812 | |
| MM | 20.6 | 28.6 | 20.6 | ||
| B | IN | 1.60 | 1.875 | 1.60 | |
| MM | 40.6 | 47.6 | 40.6 | ||
| C | IN | 1.04 | 1.25 | 1.24 | |
| MM | 26.4 | 31.8 | 31.5 | ||
| D | IN | 0.56 | 0.625 | 0.36 | |
| MM | 14.2 | 15.9 | 9.1 | ||
| PISTON | SUGGESTED USE |
| A, B* | Gases |
| B, C | Water |
| C, D | Light Oil |
| E | Heavy Oil |
* Snubber assembled and shipped with the B piston installed.
Description
1325 1/4″ NPT Piston Type Brass Snubber
1/4 NPT Piston Type Brass Snubber, Pressure Rating 6,000 PSI
Pressure Snubbers Options & Accessories
Piston-Type Snubbers Specifications
| MODEL NO. | SIZE | MATERIAL | PRESSURE RATING |
| 1325 | 1/4″ NPT | Brass | 6,000 psi |
| 1335 | SAE J1926-3:7/16-20 | Brass | 6,000 psi |
| 1350 | 1/2″ NPT | Brass | 6,000 psi |
| 5025 | 1/4″ NPT | 316 stainless steel | 15,000 psi |
| 5035 | SAE J1926-3:7/16-20 | 316 stainless steel | 8,000 psi |
| 5050 | 1/2″ NPT | 316 stainless steel | 15,000 psi |
| DIMENSIONS | 1/4″NPT | 1/2″ NPT | SAE J1926-3:7/16-20 | |
|
| A | IN | 0.812 | 1.125 | 0.812 | |
| MM | 20.6 | 28.6 | 20.6 | ||
| B | IN | 1.60 | 1.875 | 1.60 | |
| MM | 40.6 | 47.6 | 40.6 | ||
| C | IN | 1.04 | 1.25 | 1.24 | |
| MM | 26.4 | 31.8 | 31.5 | ||
| D | IN | 0.56 | 0.625 | 0.36 | |
| MM | 14.2 | 15.9 | 9.1 | ||
| PISTON | SUGGESTED USE |
| A, B* | Gases |
| B, C | Water |
| C, D | Light Oil |
| E | Heavy Oil |
* Snubber assembled and shipped with the B piston installed.
