BG-12 1.5 NBR GASKET

TG-12 1.5 Teflon Gasket

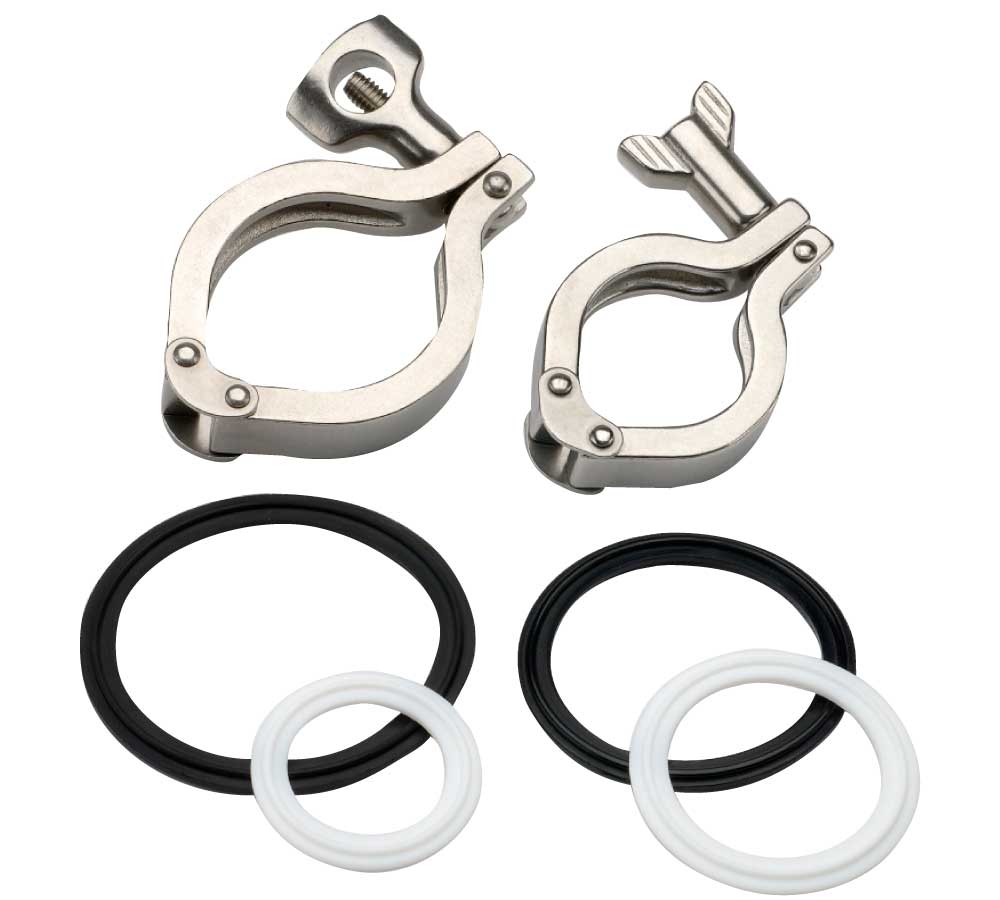

• Clamp-style fittings are constructed of T304 Stainless Steel; T316 Stainless Steel on request
• Double hinge design for easy installation and removal
• Available in sizes from ¾” to 4″
• Standard pressure rating of 500 psi at 70 °F (21 °C); up to 3,000 psi rating on request
• Clamp gaskets are available in NBR, EPDM, PTFE and FKM
• All clamps and gaskets meet FDA and 3A sanitary standards

ASME-BPE SANITARY CLAMP
1-1/2″  (CR 12)
2″        (CR 16)
2-1/2″  (CR 20)
3″        (CR 24)

NBR GASKET
1-1/2″  (BG 12)
2″        (BG 16)
2-1/2″  (BG 20)
3″        (BG 24)

PTFE GASKET
1-1/2″  (TG 12)
2″        (TG 16)
2-1/2″  (TG 20)
3″        (TG 24)
